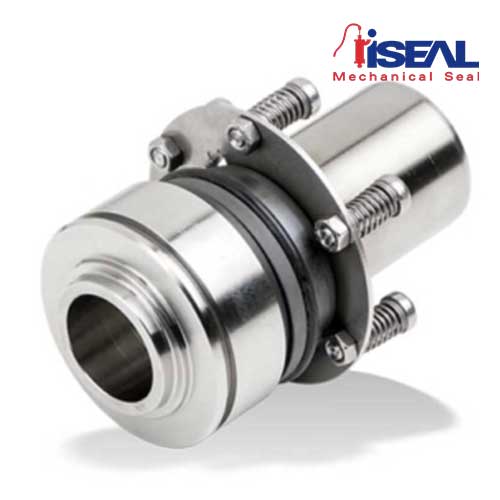

Mechanical seal 4K

Technical Data Mechanical seal IS4K

Operating pressure Up to 25 bar, dynamic Up to 37.5 bar, static
Temperature -20 °C to 150 °C
Bearing bracket (seal size)
P03ax (040), P04ax (050),
P05ax (060), P06x (070), P08sx (080),
P10ax (100), P12sx (120)
Business type Standard

Brand

KSB

Robust
Single mechanical seal, bi-directional, tailored to the seal installation space of the pump. Suitable for fluids with high solids content.
Dependable
Stationary design, balanced, multiple springs located outside the fluid handled. The large springs are insensitive to contamination and provide uniform surface pressure across the seal faces, thus ensuring a long service life.
Versatile
Can optionally also be operated with unpressurised quench liquid.
Different material variants
Primary and mating rings made of silicon carbide or, as special variant, tungsten carbide springs made of 1.4310, alternatively available made of Hastelloy as special variant.
Service-friendly
Easy to install, no adjustments required when installing.

Technical Description

Technical Description Mechanical seal 4K

Design Single mechanical seal
Type Stationary, balanced
Springs Multi-spring arrangement
Direction of rotation Bi-directional
Additional information Various wear part kits available, see ZN3302

Applications

Applications Seal 4K

waste water containing stringy material and abrasive particles

Materials

Materials Seal 4K

Primary ring SiC (Q1) / U as special variant
Mating ring SiC (Q1) / U as special variant
Elastomers EPDM (E) / FKM (V) / FFKM (K) /
FEP-coated (M1)
Springs 1.4571 (G) / 2.4610 (M)
Other Components 1.4462 (G1) / 1.4539 (G3) / 1.4501 (G4)

Benefits

The single mechanical seal is perfectly suitable for fluids with a high solids content.

Stationary design, balanced, multiple springs located outside the fluid handled. The large springs are insensitive to contamination and provide uniform surface pressure across the seal faces, thus ensuring a long service life.

Can optionally also be operated with unpressurised quench liquid.
