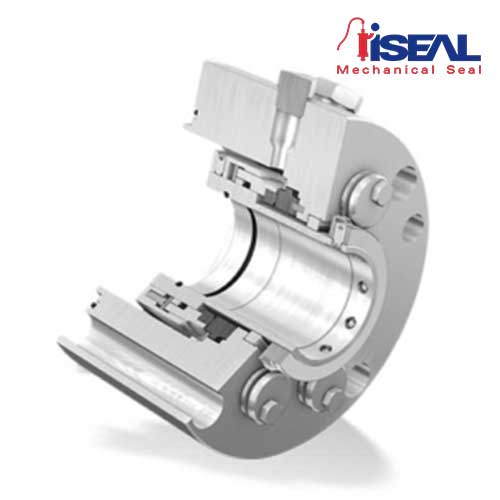

Mechanical seal 4KSBM6S

Technical Data Mechanical seal IS4KSBM6S

Shaft diameter Up to 110 mm
Pressure Up to 42 bar
Temperature -10 to 176 °C
Bearing bracket (seal size) B02 (050), B03 (060), B05 (079), B06 (100)
Sliding velocity Up to 23 m/s

Brand

KSB

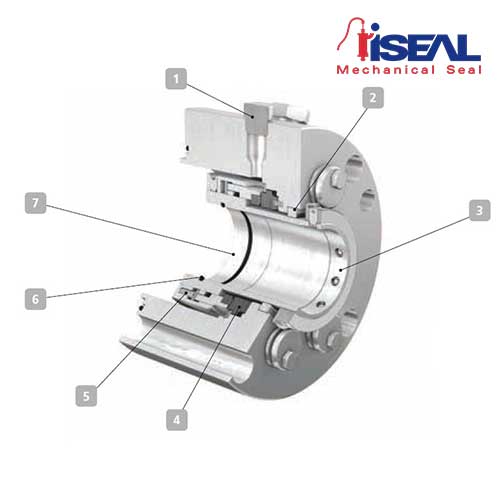

Configurable flange connections
For API Plans 11, 12, 21, 22, 31, 32, 41 + 61 (62) and 23 + 61 (62).
Fixed throttling bush
Optionally floating.
Three strong torque transmitting elements
For transmitting the rotation and for vibration damping.
Seal face material
Combination of hard and soft materials, e.g. silicon carbide and carbon graphite, which is highly resistant to blistering.
Multi-spring arrangement
Made of C276 alloy.
Rotating flexible elements
With O-ring as secondary seal.
Optional cooled gland packing chamber
(Plan 02) and connections for Plan 23 with high-efficiency pumping ring

Technical Description

Technical Description Mechanical seal 4KSBM6S

Design Double cartridge seal
Type Stationary, balanced
Springs Multi-spring arrangement
Direction of rotation Bi-directional

Applications

Applications Seal 4KSBM6S

API 682 applications in the chemical and petrochemical industries

Materials

Materials Seal 4KSBM6S

Standard AQ2VMG-AQ2V or AQ2KMG-AQ2V
Other material combinations on request

Benefits

The single cartridge seal can be connected to all common API Plans, such as 01, 02, 11, 31, 32 + 51, 61 (62) and 23 + 51, 61 (62). The seals are available for all of KSB’s API pumps.

The throttling bush enables connection to a gas, steam or liquid quench, depending on the seal variant. This prevents outboard incrustations at the seal.

The API Plan combination 02 + 23 with high-efficiency pumping ring is perfectly matched to applications with hot fluids.
