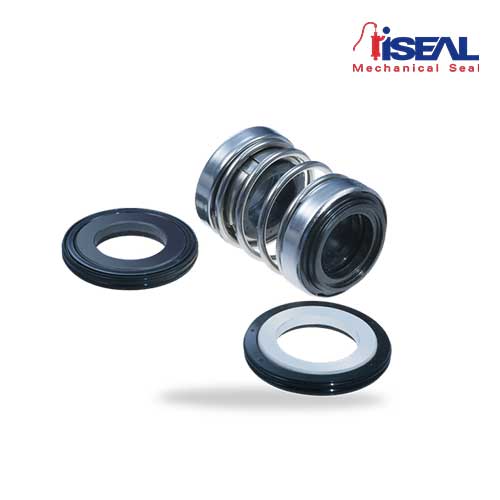

Mechanical Seal ED560
Type in the Iseal : ISD560
- Shaft diameter: d1 = 13 … 50 mm (0.51″ … 1.96″)
- Pressure:
p1 = d ≤19 mm: 2 bar (29 PSI),
d ≥ 20 mm: 3 bar (44 PSI), - vacuum … 0.1 bar (1.45 PSI)
- Temperature: t = -20 °C … +70 °C (-4 °F … 158 °F)
- Sliding velocity: vg = 5 m/s (16 ft/s)
- Axial movement: ±1.0 mm
| Brand | Iseal |
|---|

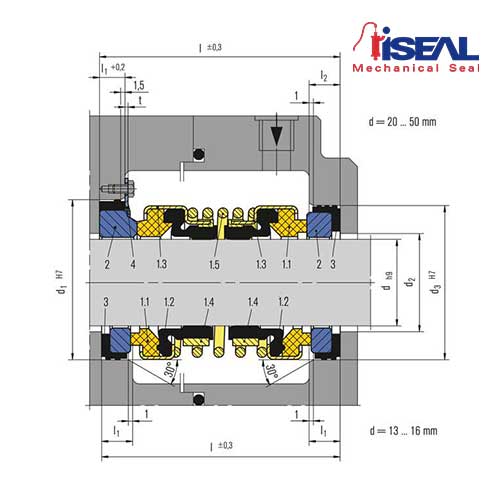

Description
| Item | Description |
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Spring collar |
| 1.4 | Drive collar |
| 1.5 | Spring |
| 2 | Seat |
| 3 | Corner sleeve |
| 4 | Washer |
Advantages
The ED560 is a dual seal in a back-to-back arrangement with an EA560 base. Therefore, the seal combines the advantages of the EA560 with the advantages of a dual seal.
Features
- Dual seal
- Good chemical resistance and ability to handle solids
- In-house manufactured sliding parts
Materials
- Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
- Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
- Elastomer: NBR (P)
- Metal parts: CrNi steel (F)
Recommended applications
- Water and waste water technology
- Chemical industry
- Process industry
- Water and waste water
- Glycols
- Oils
- Industrial pumps/equipment
- Submersible pumps
- Engine pumps
- Circulating pumps
