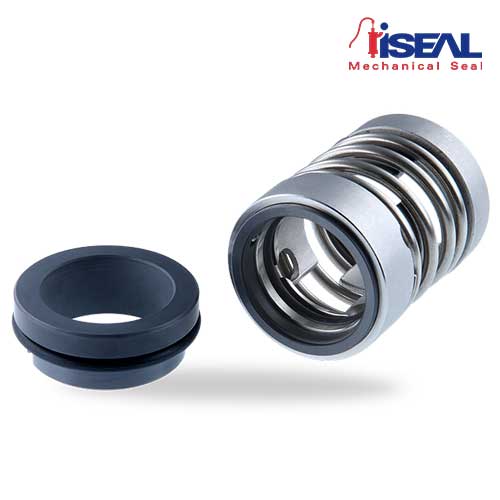

Mechanical Seal HA211
Type in the Iseal : ISA211
- Pressure: p = 12 bar (174 PSI)
- Temperature: t = -20 °C … 160 °C (-4 °F … +320 °F)
- Sliding velocity: … 20 m/s (66 ft/s)
- Viscosity: … 300 Pa·s
- Solids content: … 7 %
| Brand | Iseal |
|---|
Description
| Item | Description |
| 1.1 | Seal face |
| 1.2 | O-Ring |
| 1.3 | Drive collar |
| 1.4 | Spring |
| 1.5 | O-Ring |
| 1.6 | Set screw |
| 2 | Seat |
| 3 | O-Ring |
Features
- Single seal
- Unbalanced
- Independent of direction of rotation
- Positive torque transmission due to bayonet drive between seal head and drive collar
- O-Ring groove for ventilation prevents solids build-up and enhances flexibility
Materials
- Seal face: Silicon carbide (Q1)
- Seat: Silicon carbide (Q1)
- Secondary seals: EPDM (E), FKM (V)
- Metal parts: CrNiMo steel (G)
Recommended applications
- Pulp and paper industry
- Water and waste water technology
- High-viscosity liquids
- Pulp suspensions
- Process pumps
- Pulp pumps
