Description

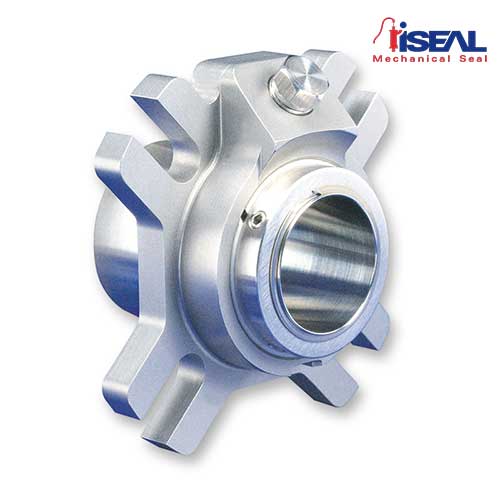

Compact, General-duty, Single Cartridge O-ring Seal

The is4610 single cartridge seal, available off-the-shelf the world over, combines affordability with fluid-sealing dependability. It’s the complete solution for sealing satisfaction in general industrial applications.

It meets key industry pump standards and is designed to permit use in rotating shaft equipment, including ANSI/DIN pumps, close-coupled pumps, vertical pumps and similar rotating shaft equipment.

Technical Description

Product Description is4610

The is4600 series cartridge seal is the complete, affordable and
off-the-shelf sealing solution for industrial liquid applications.
is4600 series meets key industry pump standards, and is
designed to permit use in rotating shaft equipment including
ANSI/DIN pumps, close-coupled pumps, vertical pumps, and
similar rotating shaft equipment.

Applications

Water and wastewater
Pulp and paper
Power generation
Chemical
Food and beverage
Pharmaceutical
Mining
Steel production
General industrial

Features is4610

California Residents: PROPOSITION 65 WARNING
Running face design optimized using proprietary computer simulation program technology.
Premium-grade carbon and silicon carbide are standard.
Robust pin drive provides positive torque transmission.
Hydraulically balanced for optimal performance.
Non-clogging, crest-to-crest wave spring
Less prone to corrosion problems
Uniform face loading
Unique centralizing ring eliminates setting clips and prevents component damage from over-compression during seal fitting.
Compact cartridge design with precise investment cast gland plate design.
Four-bolt gland accurately sets the seal axially and radially.
Large flush connection drilling ensures optimum flow and allows seal chamber venting for horizontal and vertical applications.
Factory-preset and pressure-tested assembly.
