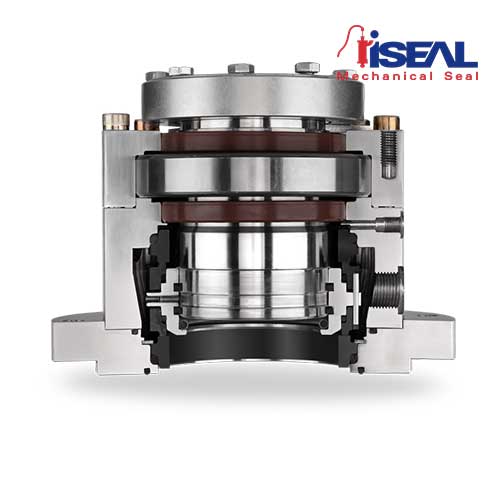

Mechanical Seal M481C
Type In Iseal: ISM481C
- Shaft diameter: d1 = 40 … 125 mm (1.57″ …. 4.92″)
- Pressure:
p1 = vacuum … 10 bar (145 PSI),p3 = max. 12 bar (174 PSI) - Temperature: t1 = -40 °C … +200 °C (-40 °F … +392 °F)
- Sliding velocity: vg = 0 … 3 m/s (0 … 16 ft/s)
| Brand | Iseal |
|---|

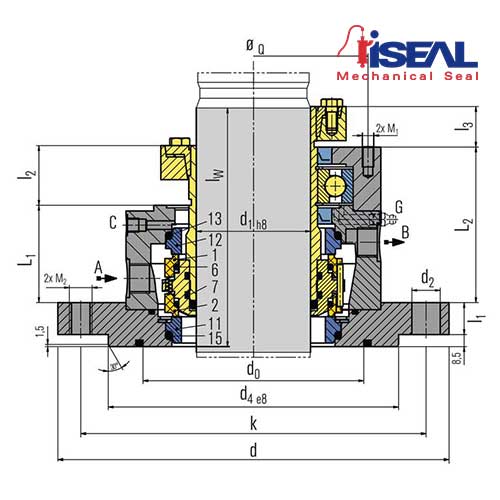

Description
| Item | Description |
| 1 | Seal face, atmosphere side |
| 2 | Seal face, product side |
| 6, 7, 13, 15 | O-Ring |
| 11 | Seat, product side |
| 12 | Seat, atmosphere side |
Advantages
- Ready-to-fit and factory-tested units
- The M481C and its variants will remain closed even during
- pressure variations or pressure reversal.
- Operation is possible with buffer fluid (p1max = 6 bar (87 PSI)) or pressurized with barrier fluid as double seal
- Available with or without bearing
- Metal-free on product side as option
- Suitable for standardizations
- Seal can be applied at higher pressure and rotating speed than specified by DIN
- ATEX certification on request
Features
- Liquid-lubricated double seal for top-entry drives
- Cartridge unit
- Self-closing on the product side
- For stepped and unstepped shafts
- Unbalanced
- Independent of direction of rotation
- Multiple springs rotating
Materials
- Seal faces: Carbon graphite or Silicon carbide, FDA conform
- Seats: Silicon carbide, FDA conform
- Secondary seals and metallic parts acc. to application and customers' requirement.
Recommended applications
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Food and beverage industry
- Agitators
- Reactors
