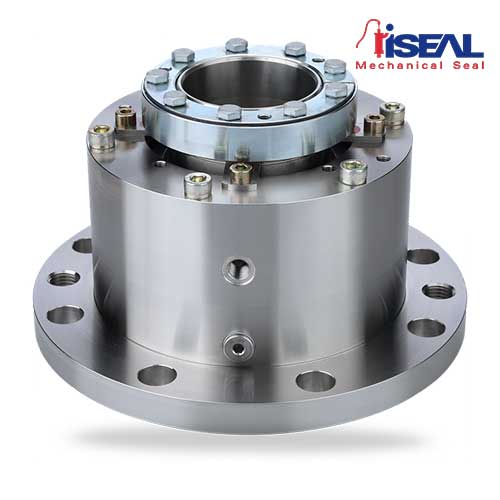

Mechanical Seal SeccoLip481
Type In Iseal: ISeccoLip481
- Shaft diameter (on stock): d1 = 40 … 125 mm (1.57″ … 4.92″)
Special shaft diameters between 25 mm and 200 mm possible (0.98″ … 7.87″) - Pressure: p1 = vacuum … 6 bar (87 PSI)
- Temperature: -30 °C … +200 °C (-22 °F … +392 °F)
- Sliding velocity: vg = 0 … 2 m/s (0 … 6 ft/s)
- Axial movement: ±3.0 mm
- Radial movement: 1.0 mm (up to 3 mm on request)
| Brand | Iseal |
|---|

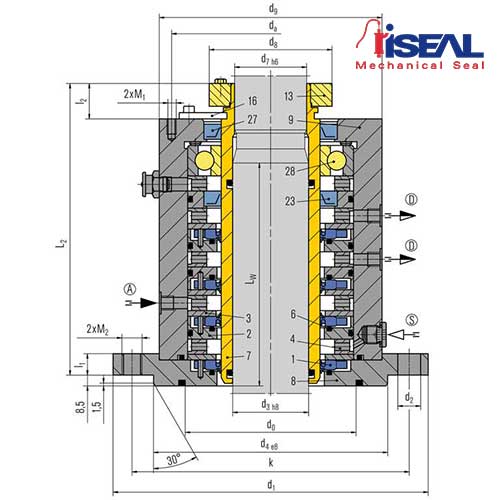

Description
| Item | Description |
| 1 | Lip seal |
| 2 | Inset |
| 3 | Disc |
| 4 | Insert ring |
| 6 | O-Ring |
| 7 | Shaft sleeve |
| 8 | Flange |
| 9 | Housing |
| 13 | Shrink disc |
| 16 | Setting device |
| 23 | Spacer ring |
| 27 | Lip seal |
| 28 | Sliding bearing |
Advantages
- Available as a ready-to-mount cartridge for quick and easy installation
- Tested technology ensures safe use
- Dry-running lip seal - depending on the application no supply system is necessary
- No additional rolling bearing required, but optionally available
- Sealing element made of bright chemically highly resistant PTFE compound
- ATEX certificate on request
- Customized adjustments possible
Features
- For top entry drives, on request other drives possible
- Dry-running
- Modular and flexible design
- Compensation of shaft deflection by patented technology
- Independent of direction of rotation
- Cartridge unit
Materials
- Lip sealing element: bright chemically highly resistant PTFE-compound with FDA
- Secondary seals: FKM (V)
- Metallic parts: 316L / 1.4404
Recommended applications
Chemical industry
Petrochemical industry
Pharmaceutical industry
Food and beverage industry
Agitators
Mixers
Reactors
