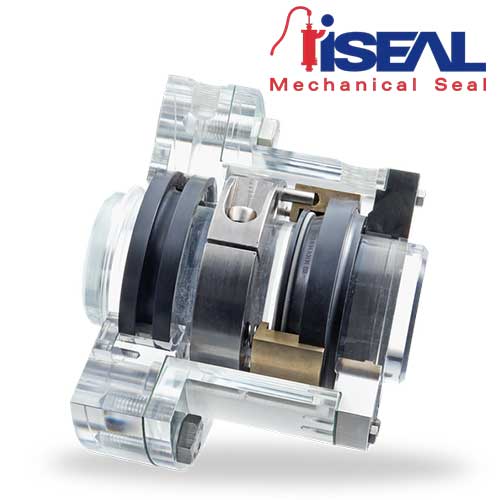

Mechanical seal Type 4600 with Shut Down Seal
Type in the Iseal : IST 4600 with Shut Down Seal
- Shaft diameter: d1 = 50 … 320 mm (1.97″ … 12.60″)
- Pressure: p = 2 … 7 bar (29 … 102 PSI)
- Temperature: t = -5 °C … 40 °C (23 °F… 104 °F)
- Speed range: n = see diagram
- Allowed shaft movements Axial: ±5 mm,
- Radial: Shaft diameter (d1) up to 200 mm: ±2 mm, >200 mm: ±3 mm
- Flushing: approx. 1 l/h per Millimeter of shaft diameter (d1)
| Brand | ISEAL |
|---|
| Item | Description |
| 1 | Seal face |
| 2 | Mating ring |
| 3 | Collar |
| 4 | Face housing |
| 5 | Clamping ring |
| 6 | Springs |
| 7 | Housing |
| 8 | Gasket |
| 9 | Cover |
| 10 | Back-up ring |
| 11 | Shut down seal |
| 12 | Flange |
- With shut down seal
- Water-lubricted
- No oil or grease emissions to the environment
- Low power consumption
- Carbon seal face unsplit for first installation, split for repairs
- Version with split mating ring available
The water-lubricated stern tube seals type 4600 from EagleBurgmann are not alone an environment-friendly solution. They meet all technical requirements of modern sealing technology: modular design, convenient installation, little maintenance, no adjustments. Applying a shut down seal eliminates costly and time-consuming dry-docking. Maintenance and repairs can be performed with vessel afloat.
Type 4600 water-lubricated stern tube seals are virtually leak-free and are leaving no oil or grease residues in the waterway. And because they prevent getting water into the bilge, no elaborate actions are required for its disposal.
Please ask us for references.
- Seal face: Carbon graphite antimony impregnated (A),
- Carbon graphite resin impregnated (B)
- Mating ring: Special cast CrNiMo steel (S) / 1.4462
- Collar, shut down seal:
- Nitrile-butadiene rubber (P)
- Springs: Hastelloy® C-4 (M) /1.4401
- Gasket: Burasil® (Y)
- Metal parts: 1.4571 / Bronze
- Shipbuilding
- Sea water
- Fresh water
