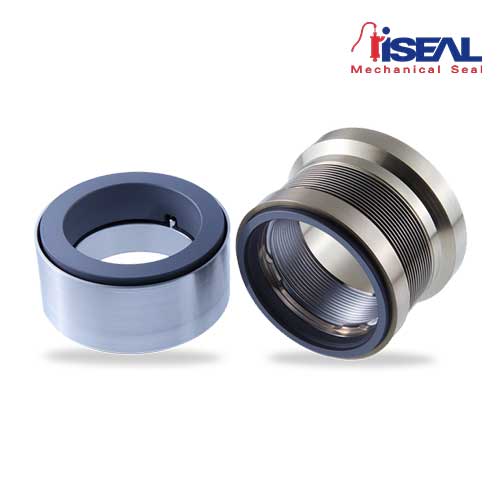

Mechanical Seal YE400
Type in the Iseal : ISYE400
- Pressure (single ply bellows): p = vacuum … 20 bar ( … 290 PSI)
- Pressure (two ply bellows): p = vacuum … 35 bar ( … 508 PSI)
- Temperature: t = -240 °C … +425 °C (-400 °F … +797 °F)
- Sliding velocity: vg = … 50 m/s (164 ft/s)
- Viscosity: … 1 Pa·s
| Brand | Iseal |
|---|
Description
| Item | Description |
| 1 | Stationary unit |
| 1.1 | Bellows unit |
| 1.2 | Gasket |
| 1.3 | Clamp sleeve |
| 1.4 | Spring washer |
| 1.5 | HSH cap screw |
| 2 | Seat |
| 3 | Secondary seal |
| 4 | Seat housing |
| 5 | Drive pin |
| 6 | Gasket |
| 7 | Spring washer |
| 8 | HSH cap screw |
Advantages
For high or low temperature applications
Features
- Single seal
- Balanced
- Independent of direction of rotation
- Stationary metal bellows
Materials
- Seal face: High density carbon graphite
- Seat: Silicon carbide (Q2)
- Bellows: Inconel® 718 (M6)
- Secondary seals: Graphite
- Metal parts: 1.4404, Carpenter® 42 (T4)
Recommended applications
- Refining technology
- Power plant technology
- Chemical industry
- High and low temperature hydrocarbon services
- Residual oil
- Gas oil
- Low temperature ethylene
- Pumps
- Special rotating equipment
