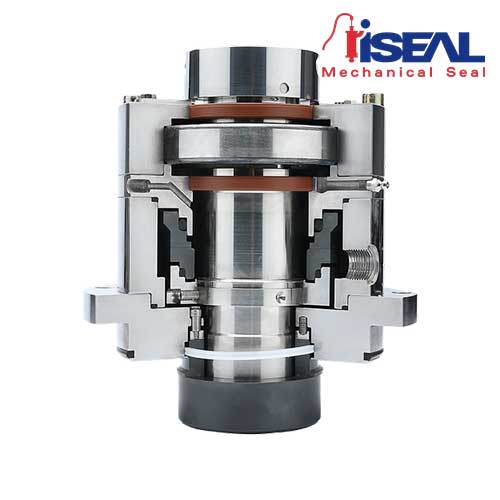

Mechanical Seal AGSR
Type In Iseal: ISGSR
- Shaft diameter: d1 = 20 … 200 mm (0.8″ … 7.9″)
- Pressure: p1 = Vakuum … 6 bar (87 PSI),
Δp = min. 3 bar (44 PSI),
p3 = max. 9 bar (131 PSI) - Temperature: t1 = -20 °C … +200 °C (-4 °F … +392 °F)
- Sliding velocity: vg = 0 … 5 m/s (0 … 16 ft/s)
| Brand | Iseal |
|---|
Description

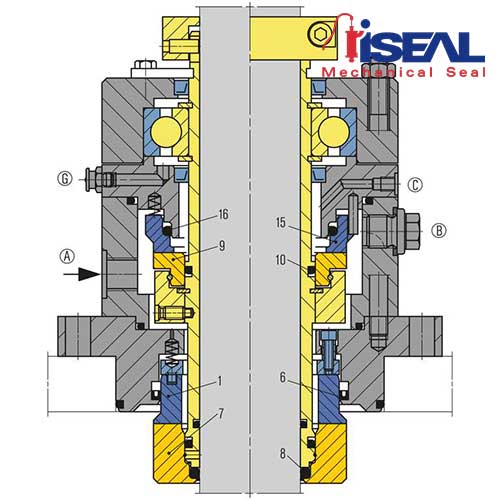

| Item | Description |
| 1, 15 | Seal face |
| 6 | Sealing ring |
| 7, 9 | Seat |
| 8, 10, 16 | O-Ring |
Advantages
- Ready-to-fit and factory-tested unit
- Rotating seat at product side
- Torque transmission by clamping ring for large axial movements
- Non-contacting operation
- No friction on the seal faces, no heat generated at the seal or in the medium
- Sterile design available
ATEX certification on request
Features
- For top, bottom and side entry drives
- Double seal
- Balanced
- Stationary springs on product side
- Independent of direction of rotation
- Gas-lubricated
- Cartridge unit
Materials
- Seal faces and seats: Silicon carbide, FDA conform
- Secondary seals and metallic parts acc. to application and customers' requirement.
Recommended applications
- Chemical industry
- Food and beverage industry
- Pharmaceutical industry
- Mixers
- Dryers
- Special rotating equipment
