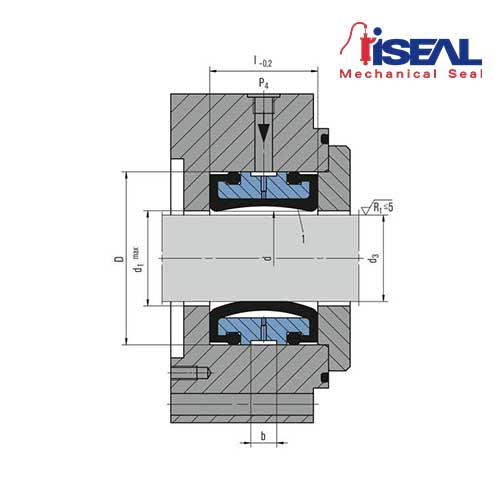

Mechanical Seal STD1
Type In Iseal: ISSTD1
- Shaft diameter: d3 = 40 … 200 mm (1.57″ … 7.87″)
- Pressure: p1 = 16 bar (232 PSI)
- Temperature: t = +100 °C (+212 °F)
| Brand | Iseal |
|---|
Description
This seal can only be used if the product does not harden or congeal during the shut down period or for sterile operation (fermenting vessels). Not available in PTFE.
Advantages
Can be installed in each position.
Features
If a STD is employed, it is possible to change seals with the vessel loaded and under pressure (shaft must be stationary!). Installation dimensions according to DIN 28138 Part 1 are possible. Material properties have to be taken into account.
Recommended applications
- Chemical industry
- Pharmaceutical industry
- Agitators
