Mechanical Seal AX40K
Type in the Iseal : ISX40K
- Shaft diameter: d1 = 18 … 300 mm
- Pressure: p1 = 25 bar (363 PSI)
- Temperature: t = -40 … 220° C ( -40 … 428° F)
- Sliding velocity: vg = 20 m/s (66 ft/s)
| Brand | Iseal |
|---|

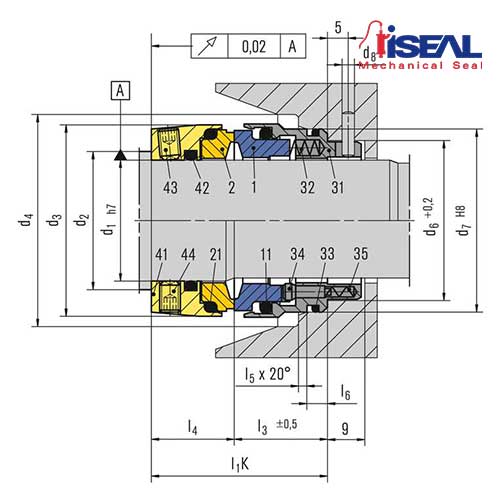

Description
| Item | Description |
| 1 | Seal ring |
| 2 | Mating ring |
| 41 | Adjusting ring |
| 11, 21, 33, 42 | O-Ring |
| 31 | Housing |
| 32, 35 | Spring |
| 34 | Pin |
| 43, 44 | Set screw |
Advantages
- Balanced seal in the installation space of a unbalanced seal
- Springs protected from the product
- Suitable-to-ceramic design
- Smooth external contours
Features
- Stationary springs
- Balanced
- Independent of direction of rotation
- Independent of pressure direction
Materials
- Seal face: Silicon Carbide (Q1, Q2)
- Seat: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
- Secondary seals:
EPDM (E), FKM (V), FFKM (K) - Springs: CrNiMo steel (G)
- Metal parts: CrNiMo steel (G)
Recommended applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
Mining industry - Building services industry
- Food and beverage industry
- Shipbuilding
- Sugar industry
- Metal production and processing
