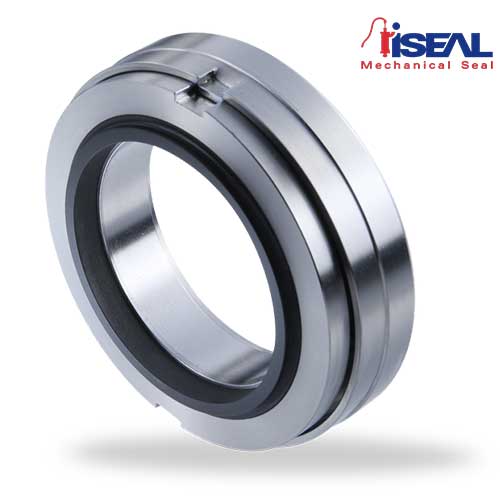

Mechanical Seal H10 / H8
Type in the Iseal : ISH10-H8
- Shaft Diameter: d1 = 15 … 100 mm (0.6″ … 3.9″)
- Pressure: p1 = 25 bar (363 PSI)
- Temperature: t = -40 … +180 °C (-40 °F … 356 °F)
- Sliding velocity: vg = 35 m/s (115 ft/s)
| Brand | Iseal |
|---|

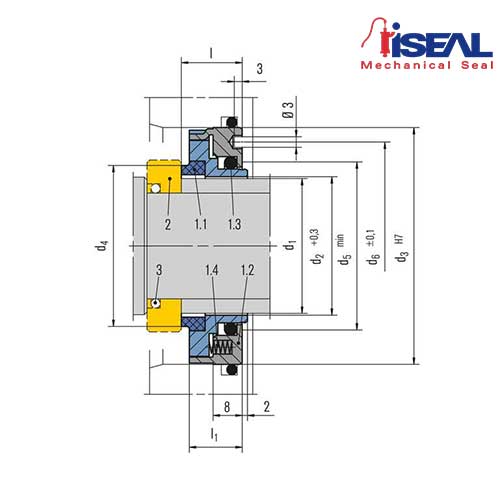

Description
| Item | Part no. DIN 24250 | Description |
| 1.1 | 472 | Seal face |
| 473 | Seal face housing | |
| 1.2 | 485 | Drive collar |
| 1.3 | O-Ring | |
| 1.4 | 477 | Spring |
| 2 | 475 | Rotating seat*) |
| 3 | 412.2 | O-Ring |
Advantages
- Insensitive to solids in the medium
- Very short axial installation length (analog lip seals) combined with high pressure capability
- No damage of the shaft by dynamically loaded O-Ring
- Due to the stationary design insensitive to shaft misalignements
- Compact ready-to-install unit
Features
- Single seal
- Balanced
- Independent of direction of rotation
- Stationary multiple springs
Materials
- Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B)
Recommended applications
Process industry
Chemical industry
Water and waste water technology
Lube oils
Roller seal
Bearing seal
All seal chambers with a very short axial installation length
