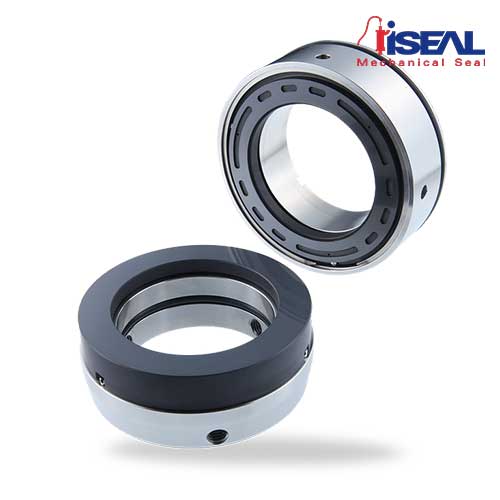

Mechanical Seal EM300
Type in the Iseal : ISM300
- Pressure: p = 2 bar (29 PSI) normal operation, max. 60 bar (870 PSI)
- Temperature: t = -20 °C … +200 °C (-4 °F … +392 °F)
- Sliding velocity: vg = 25 m/s (82 ft/s)
| Brand | Iseal |
|---|

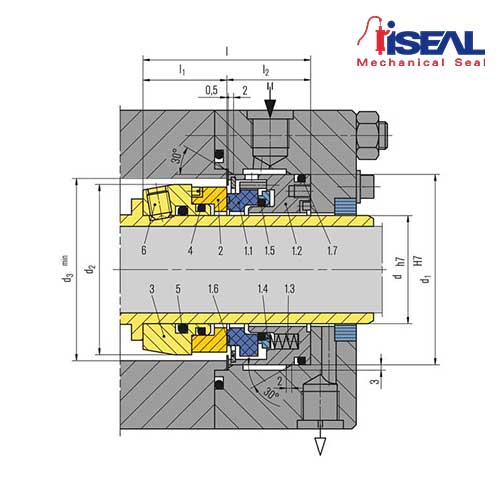

Description
| Item | Description |
| 1.1 | Seal face |
| 1.2 | Adapter |
| 1.3 | Spring |
| 1.4 | Thrust ring |
| 1.5 | O-Ring |
| 1.6 | Retaining ring |
| 1.7 | O-Ring |
| 2 | Seat |
| 3 | Drive collar |
| 4 | O-Ring |
| 5 | O-Ring |
| 6 | Set screw |
Advantages Seal
- Dry contact secondary seal
- Prevention of hazardous emissions
- Can be used as a secondary seal of tandem seal in liquid applications
Features
- Balanced
- Independent of direction of rotation
- Stationary multiple springs
- API682 arrangement 2 containment seal
Materials
- Seal face: Special carbon
- Seat: Silicon carbide (Q1, Q2)
- Secondary seals: FKM (V)
- Metal parts: CrNiMo steel (G)
Recommended applications
- Chemical industry
- Refining technology
