Mechanical seal IS2874

Technical Data Mechanical seal IS2874

Temperature Limits -30°F to 500°F/-34°C to 260°C
Pressure Limits
- Vacuum to 600 psi(g)/(41 bar(g)
- Maximum differential pressure (process/inbd) is 150 psi(g)
Speed Limits
- 1450 to 3600 rpm
- Consult engineering for low- or high-speed designs.
Other
- 1.375 to 4.000″
- Consult engineering for non-standard sizes

Brand

KSB

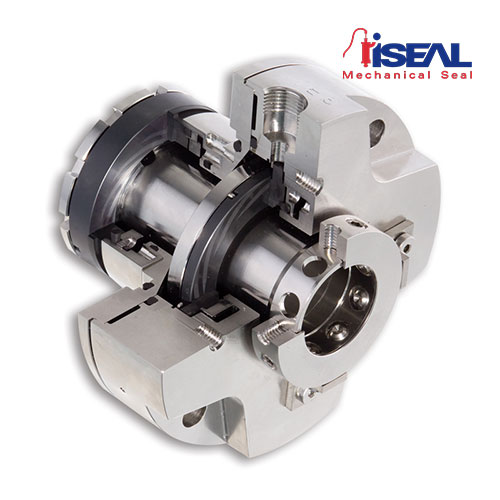

Non-contacting Dual Gas Seal Cartridge for Pumps IS2874

The IS2874 is an internally pressurized, gas-lubricated, non-contacting dual cartridge seal designed for use in API, ANSI and DIN large-bore seal chambers.

Product Description IS2874

Non-contacting, internally pressurized outward pumping dual seal cartridge for new and existing pumps
For Maximum Achievable Control Technology (MACT) and high reliability sealing of volatile or hazardous fluids in chemical, petrochemical and refining processes
For process fluids that display turbidity or solids in suspension.
For sealing high purity fluids without potential for product contamination
For sealing fluids that are sensitive to thermal gain or decay
For use in API, ANSI and DIN large bore seal chambers

Applications

Process pumps
Other rotating equipment

Features is2874

California Residents: PROPOSITION 65 WARNING
ID to OD pumping spiral groove arrangement places process fluid at the OD of the inboard seal.
Eliminates low flow regions in close proximity to inboard seal
Reduces dewatering and hang-up
Rotating mating ring imparts centrifugal flow to fluid in the seal chamber, which keeps fluid moving and helps prevent solids from falling out of solution.
