Mechanical seal IS515E

Technical Data Mechanical seal IS515E

Temperature Limits -40°F to 390°F/40°C to 200°C
Pressure Limits Vacuum to 290 psi(g)/20 bar(g)
Speed Limits 5000fpm/25m/s

Brand

KSB

Asymmetric Formed Metal Bellows Designed for General Purpose Use IS515E

Asymmetric formed metal bellows designed for general purpose use. General sealing duties include biotechnology, chemical processing, food processing, mining, oil, oil refining, pulp and paper, pharmaceutical, wastewater treatment and water systems.

Technical Description

Product Description Type IS515E

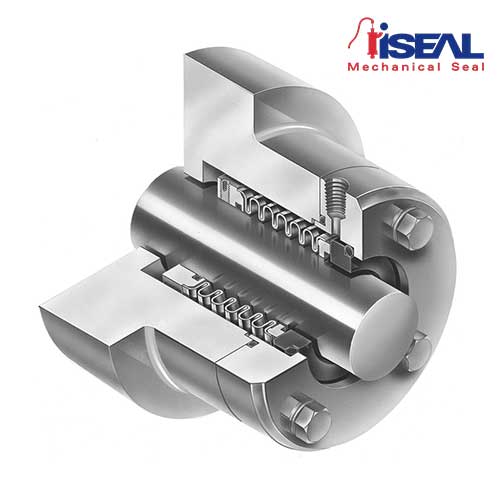

The IS515E is a formed metal bellows seal with a computer optimised asymmetric bellows profile. General sealing duties include: biotechnology, chemical processing, mining, oil, oil refining, pulp and paper, pharmaceutical, wastewater treatment and water systems. is515E is ideal where hygiene and purity are essential, such as food preparation and the pharmaceutical industry

Applications

Process pumps
Other rotating equipment

Features is515e

California Residents: PROPOSITION 65 WARNING
Compact design complies with European standards DIN 24960/L1N, ISO 3069 and BS.2557:1975. Inch sizes up to and including 2.625 in. Also complies with ANSI B73.1-1974.
Asymmetric bellows form results in even stress distribution with benefits of greater strength and higher rate of flexibilty; seal is bi-rotational and inherently pressure balanced.
Smooth profile is resistant to clogging and therefore ideal for slurries and fibrous liquids. Similarly, seal unit is easy to clean and sterilize in place.
Unit construction ensures a simple-to-fit seal, with superior heat dissipation paths. Seal unit is reliable and does not wear the shaft
