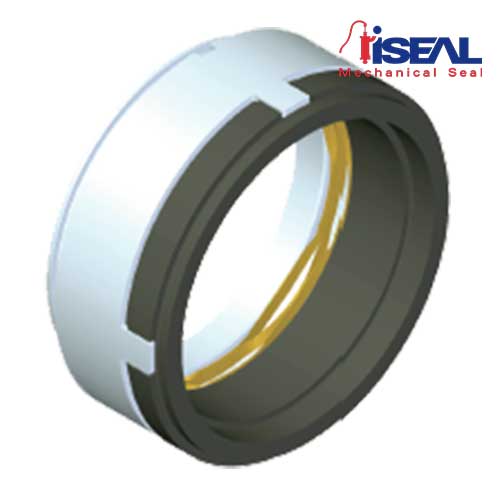

Mechanical seal IS5610V

Technical Data Mechanical seal IS5610V

Temperature Limits -20°F to 400°F/-30°C to 205°C
Pressure Limits
- Up to 75mm / 3.000″: 300 psi(g)max/21 bar(g)
- Over 75mm / 3.000″: 200 psi(g)max/13 bar(g)
Speed Limits Up to 5,000fpm/25m/s

Brand

KSB

Universal Cartridge Ear Drive O-Ring Seal Head – IS5610V – VQ – VP

The specially engineered, fully interchangeable ear drive O-ring seal head extends the functionality of the is5600 series product line for standard ANSI and large bore pumps.

The is5610V is a single cartridge using the ear drive O-ring pusher seal head.

The is5610VQ is a single cartridge arrangement using the ear drive O-ring pusher seal head along with a quench gland containing a carbon ring throttle bushing.

The is5620VP is a dual cartridge arrangement using the ear drive O-ring pusher seal head

Technical Description

Product Description is5610V – VQ – VP

The specially engineered, fully interchangeable ear drive O-ring seal head extends the functionality of the 5600 series product line for standard ANSI and large bore pumps.
The is5610V is a single cartridge using the ear drive O-ring pusher seal head.
The is5610VQ is a single cartridge arrangement using the ear drive O-ring pusher seal head along with a quench gland containing a carbon ring throttle bushing.
The is5620VP is a dual cartridge arrangement using the ear drive O-ring pusher seal head.

Applications

Process pumps
Other rotating equipment

Features is5610V

California Residents: PROPOSITION 65 WARNING
Ear driven primary ring ensures maximum seal life under a wider range of operating conditions.
Retrofits with existing 5600 seal heads.
Optimized primary ring design provides greater reliability.
Nonclogging wave spring is located outside of the product
