Mechanical seal ISGL1B

Technical Data Mechanical seal ISGL1B

Temperature Limits -40°F to 500°F/-40°C to 260°C
- Pressure Limits
- Dynamic /Static: Vacuum to 230 psi(g)/16 bar(g)
Special Design: Vacuum to 435 psi(g)/30 bar(g)
Speed Limits 5000fpm/25m/s

Brand

KSB

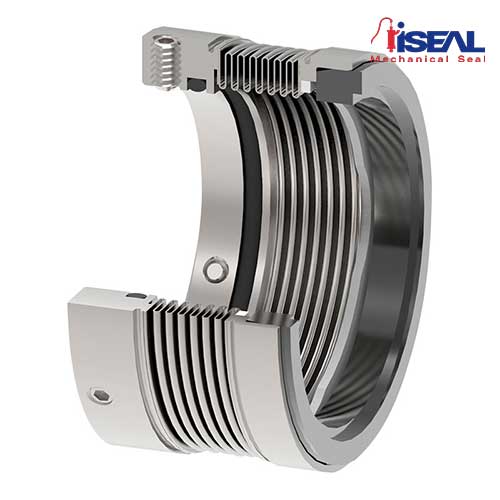

Formed Metal Bellows Seal for General Service ISGL1B

The ISGL1B is a double-ply formed bellows seal to meet the dimensional requirements of DIN 24960 L 1K. The double-ply design results in axial-flexible, yet extremely strong construction. The ISGL1B is used on general sealing duties in pumps, mixers, blenders, agitators, compressors and other rotary shaft equipment. The bellows are manufactured from Inconel is625 for strength and corrosion resistance, and face materials for arduous service are available.

Technical Description

Product Description ISGL1B

The isGL1B seal is the first double-ply formed bellows seal to meet the dimensional requirements of DIN 24960 L1K. The double-ply design results in an axially flexible, yet extremely strong construction.

General sealing duties in pumps, mixers, blenders, agitators, compressors, and other rotary shaft equipment
For pulp and paper, chemical processing, food processing, wastewater treatment, and other demanding applications
Abrasive fluids and slurries in pulp and paper, mining, and wastewater treatment

Applications

Process pumps
Other rotating equipment

Features isgl1b

California Residents: PROPOSITION 65 WARNING
Smooth, open bellows profile ideal for slurries and fibrous liquids.
Hydraulically balanced with no dynamic elastomers to hang-up or restrict movement.
Widely used in a range of process industries such as chemical process, paper and pulp, and a full range of
water and sewage industries.
Available in component or engineered cartridge arrangements.
DOUBLE-PLY Inconel bellows combines strength with axial flexibility.
