Mechanical seal IS680

Technical Data Mechanical seal IS609HTC

Standard Materials
- Carbon face: To 200C/400F
- Tungsten Carbide or Silicon Carbide face: 150C/300F
Pressure Limits Vacuum to 360 psi(g)/25 bar(g)
Speed Limits 5000fpm/25m/s

Brand

KSB

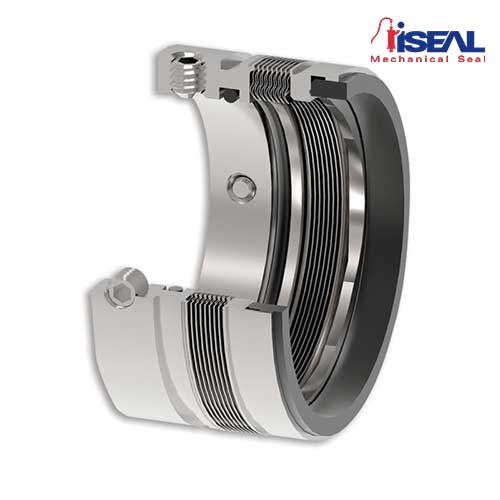

Low-temperature, General Duty All-Alloy-20 Edge-welded Metal Bellows Seal is680

The is680 is the ideal seal for general-purpose applications. Its rotating Alloy-20 bellows provide corrosion resistance in a broad range of corrosive media. Its cost-effective design, combined with a reliable performance history, has made the is680 a standard for low-temperature applications found in the chemical, water and wastewater, pulp and paper, and utility industries. The seal is available with hard faces for abrasive applications and a wide range of elastomers to cover a broad range of applications

Technical Description

Product Description is680

is670: All-alloy C-276 high-strength low-temperature bellows assembly for highly corrosive applications.
is676: AM350 low-temperature bellows assembly for large sizes and mildly corrosive applications.
is680: All-alloy 20 low-temperature high-performance seal for use on a broad range of corrosive media.

Applications

Process pumps
Other compressors
Other rotating equipment

Features is680

California Residents: PROPOSITION 65 WARNING
Static secondary seal available in single or dual arrangements, shaft-mounted or in a cartridge
Manufactured with a 45-degree tilt edge at the bellows’ inside diameter to disperse stresses and maximize operating life.
Superior nesting ripple plate shape with a three-sweep radius; this plate design allows the bellows device to be flexed repeatedly without the metal being stressed beyond its endurance limit.
Self-cleaning design — rotating bellows throw off suspended particles that clog spring-type seals. This self-cleaning action eliminates the need for external flushing, filters or cyclone separators and their associated costs.
World-class bellows manufacture — our bellows production facility has an outstanding manufacturing process with state-of-the-art stamping, welding and testing technology.
The bellows incorporate all of the design features resulting from key engineering competencies, such as metallic thin shell methodology, tribology and fluid sealing technology, and thin film/fluid mechanics
