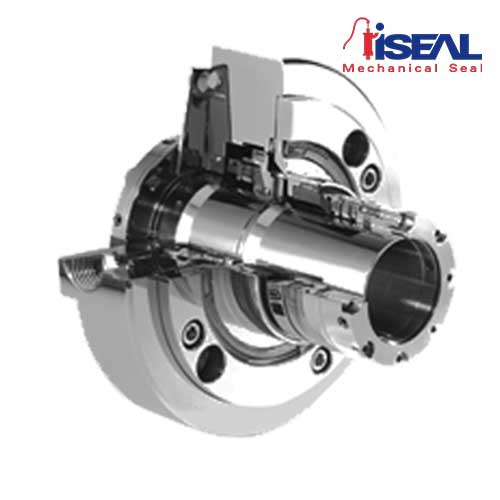

Mechanical seal IS2715T

Technical Data Mechanical seal IS2715t

Temperature Limits -100°F to 800°F/-75°C to 425°C
Pressure Limits 300 psi(g)/20 bar(g)
Speed Limits 5000fpm/25m/s

Brand

KSB

High-temperature Single and Dual Metal Bellows Cartridge Seal for Dean Bros. Pumps IS2715T

The is2715T is available as a single or dual high-temperature cartridge seal for Dean Bros. pump models R434, R454 and R484, and are optimum sealing arrangements for hot-heat transfer fluids. The seal is available with hard faces for handling carbonizing heat transfer fluids and an integral pumping ring in dual arrangements for effective circulation of a barrier fluid.

Technical Description

Product Description is2715T

High Temperature Bellows Seals that withstand temperatures up to 425°C/800°F

Single and dual arrangements
Edge-welded metal bellows
Optimum seal arrangements for high temperature heat transfer fluids

Applications

Process pumps

Features is2715t

California Residents: PROPOSITION 65 WARNING
Available as a single or dual cartridge for Dean Bros. R434, R454, R484 pumps
iseal edge-welded metal bellows
Optimum seal arrangements for high-temperature heat transfer fluids
Fits pumps that are packed or sealed
Flexible graphite secondary seals – no thermal degradation of the secondary seal
Available with silicon carbide or tungsten carbide face for carbonizing heat transfer fluids
Integral pumping ring for dual arrangements — no thermo-siphoning or expensive auxiliary pumping system
